Description
Key Features:
Superior Efficiency:
Achieves a maximum efficiency of 98.7%, providing optimal energy conversion with minimal power loss.
Advanced MPPT Technology:
Features 4 independent MPPTs, allowing for efficient power generation from multiple solar panel arrays under varying conditions.
Wide Voltage Range:
Supports a DC input voltage range of 200V to 1000V, ensuring flexibility in system design.
Real-Time Monitoring:
Compatible with SolisCloud for remote monitoring, performance tracking, and fault diagnostics via mobile or desktop.
Comprehensive Safety Features:
Includes Type II surge protection, anti-islanding, ground fault detection, and DC reverse polarity protection for secure operation.
Efficient Cooling System:
Equipped with an intelligent fan cooling system to maintain optimal temperature and ensure long-term reliability.
Durable and Weather-Resistant:
Designed to endure harsh weather conditions, with a robust build for outdoor installation.
User-Friendly Design:
Lightweight and compact with an intuitive LCD display for easy setup and monitoring.
Technical Specifications:

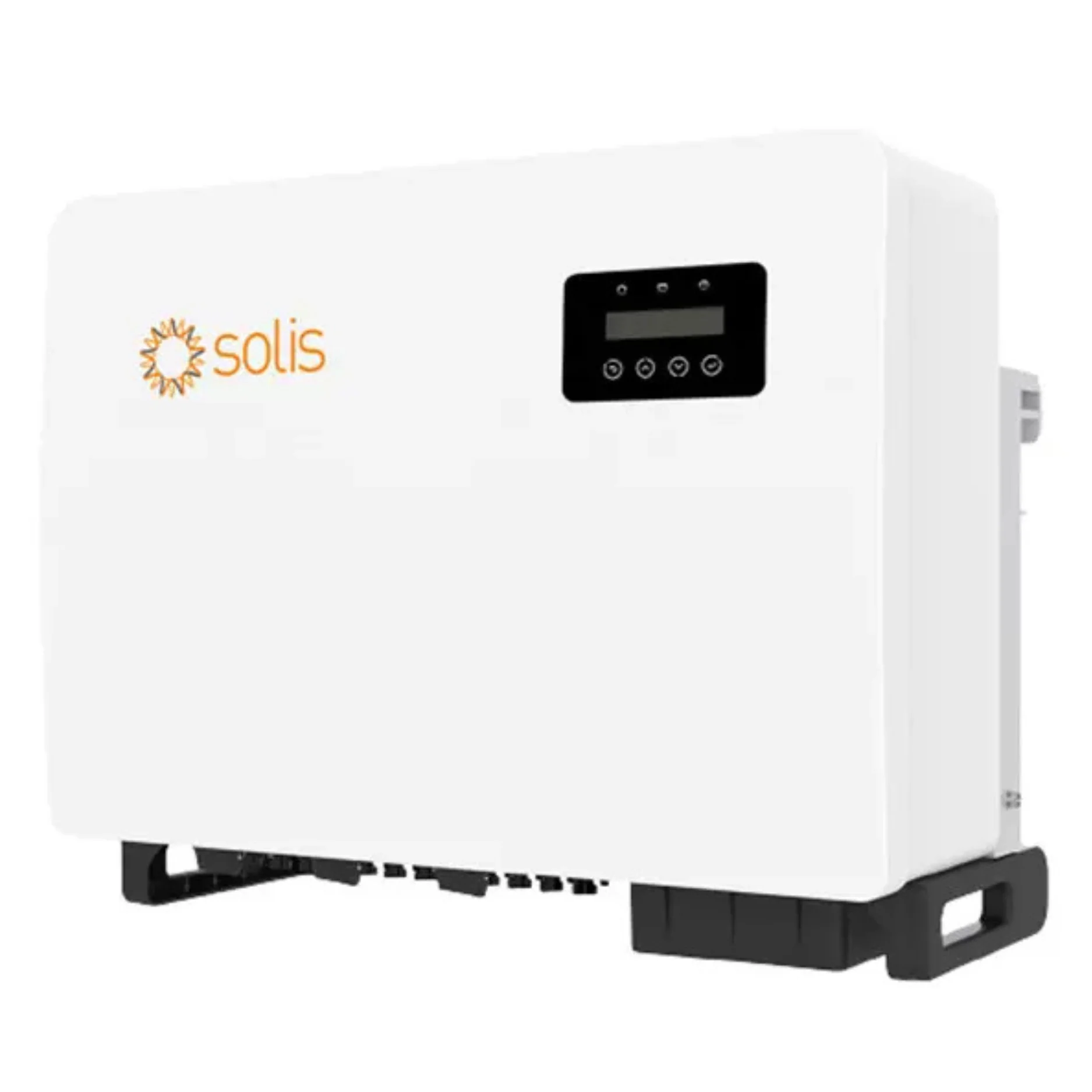

Model: Solis 60kW On-Grid
Output Power: 60,000W
Input Voltage (DC): 200V – 1000V
Max PV Input Current: 22A per MPPT
Number of MPPTs: 4
Output Voltage (AC): 230/400V
Grid Frequency: 50/60 Hz
Operating Temperature Range: -25?C to 60?C
Communication Interface: RS485, Wi-Fi, GPRS (optional)
Cooling Method: Intelligent fan cooling
Weight: Approx. 70 kg
Dimensions: 580 x 755 x 310 mm
Applications:
Ideal for large commercial and industrial solar power systems where high energy output and reliability are essential.
Benefits:
Cost Efficiency: Reduces reliance on grid electricity, lowering energy bills.
Eco-Friendly: Contributes to a greener environment by utilizing renewable energy.
Reliable Operation: Engineered for consistent performance in diverse environments.
Additional Options:
Compatible with Wi-Fi and GPRS modules for enhanced system monitoring and control.
