Description
Key Features:
Superior Efficiency:
Achieves a maximum efficiency of 98.7%, ensuring excellent energy conversion and minimal power loss.
Advanced Dual MPPT Technology:
Equipped with 2 independent MPPTs, allowing flexible and optimized power generation from different solar panel configurations.
Wide Operating Voltage Range:
Operates effectively within a voltage range of 200V to 1000V, suitable for varied environmental conditions.
Real-Time Monitoring:
Supports SolisCloud for remote monitoring and system performance analysis via mobile or desktop devices.
Robust Safety Features:
Includes Type II surge protection, ground fault protection, and anti-islanding, ensuring safe and reliable operation.
Durable Build:
Designed to withstand harsh environments with high-quality materials and a natural convection cooling system.
User-Friendly Interface:
Features an intuitive LCD display for quick setup, monitoring, and diagnostics.
Low Maintenance:
Simple installation and low operational costs, reducing long-term maintenance efforts.
Technical Specifications:

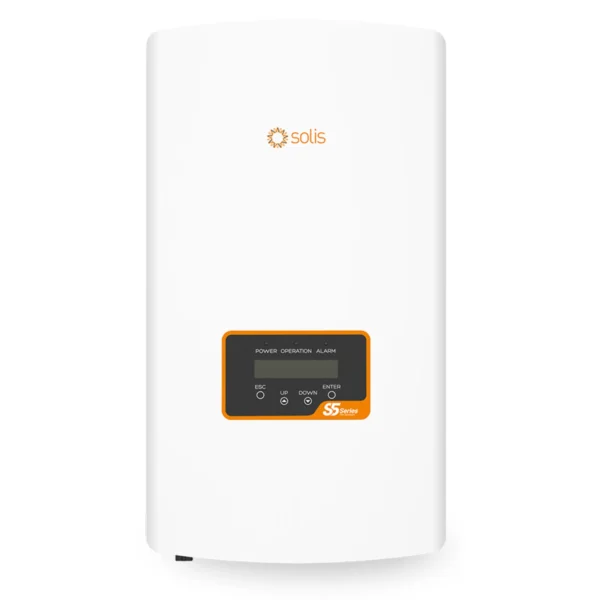

Model: Solis 20kW On-Grid
Output Power: 20,000W
Input Voltage (DC): 200V – 1000V
Max PV Input Current: 22A per MPPT
Number of MPPTs: 2
Output Voltage (AC): 230/400V
Grid Frequency: 50/60 Hz
Operating Temperature Range: -25?C to 60?C
Communication Interface: RS485, Wi-Fi, GPRS (optional)
Cooling Method: Natural convection
Weight: Approx. 24 kg
Dimensions: 310 x 563 x 219 mm
Applications:
Perfect for medium to large-scale residential, commercial, and industrial solar installations where high performance and reliability are critical.
Benefits:
Cost-Effective: Reduces reliance on grid electricity, lowering energy bills.
Environmentally Friendly: Supports sustainable energy production.
High Reliability: Engineered for long-lasting performance under challenging conditions.
Additional Options:
Compatible with Wi-Fi or GPRS monitoring kits for enhanced system control and visibility.
