Description

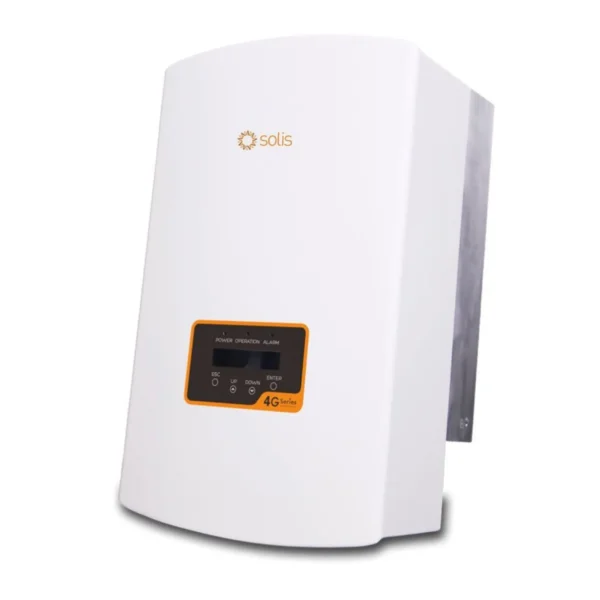

The Solis 10kW On-Grid Solar Inverter is a high-performance device designed to efficiently convert DC power from solar panels into AC power for residential and commercial applications. Its advanced features and robust design make it a reliable choice for various energy needs.
Key Features:
High Efficiency: Achieves a maximum efficiency of 98.5%, ensuring optimal energy conversion and minimal losses.
Dual MPPT Design: Equipped with two Maximum Power Point Tracking (MPPT) channels, each supporting up to 16A of current, allowing for flexible panel configurations and improved energy harvest.
Wide Voltage Range: Operates with an ultra-low start-up voltage of 180V and a maximum PV input voltage of 1100V, providing flexibility in system design.
Integrated AFCI: Includes Arc Fault Circuit Interruption (AFCI) for enhanced safety, detecting and mitigating arc faults in the DC circuit.
Type-II Surge Protection: Features Type-II over-voltage surge protection for both DC and AC sides, safeguarding the system against voltage spikes.
IP66 Rating: Designed with an IP66 rating, ensuring durability and protection against dust and water ingress.
Smart Grid Ready: Compliant with international standards for seamless integration with the grid, supporting features like dynamic peak management and zero feed-in.
Technical Specifications:
Model: Solis S5-GR3P10K
Rated Output Power: 10kW
Input Voltage (PV Side):
Max. Input Voltage: 1100V
MPPT Voltage Range: 180V – 850V
Start-Up Voltage: 180V
Max. Input Current: 16A per MPPT
Output Voltage: 400V (Three-Phase)
Output Frequency: 50Hz/60Hz
Operating Temperature Range: -25?C to +60?C
Dimensions: 480mm (W) x 480mm (H) x 176mm (D)
Weight: 19.8 kg
Ingress Protection: IP66
Applications:
The Solis 10kW On-Grid Solar Inverter is ideal for:
Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
Small to Medium Commercial Use: Supporting energy demands in small to medium-sized businesses.
