Description

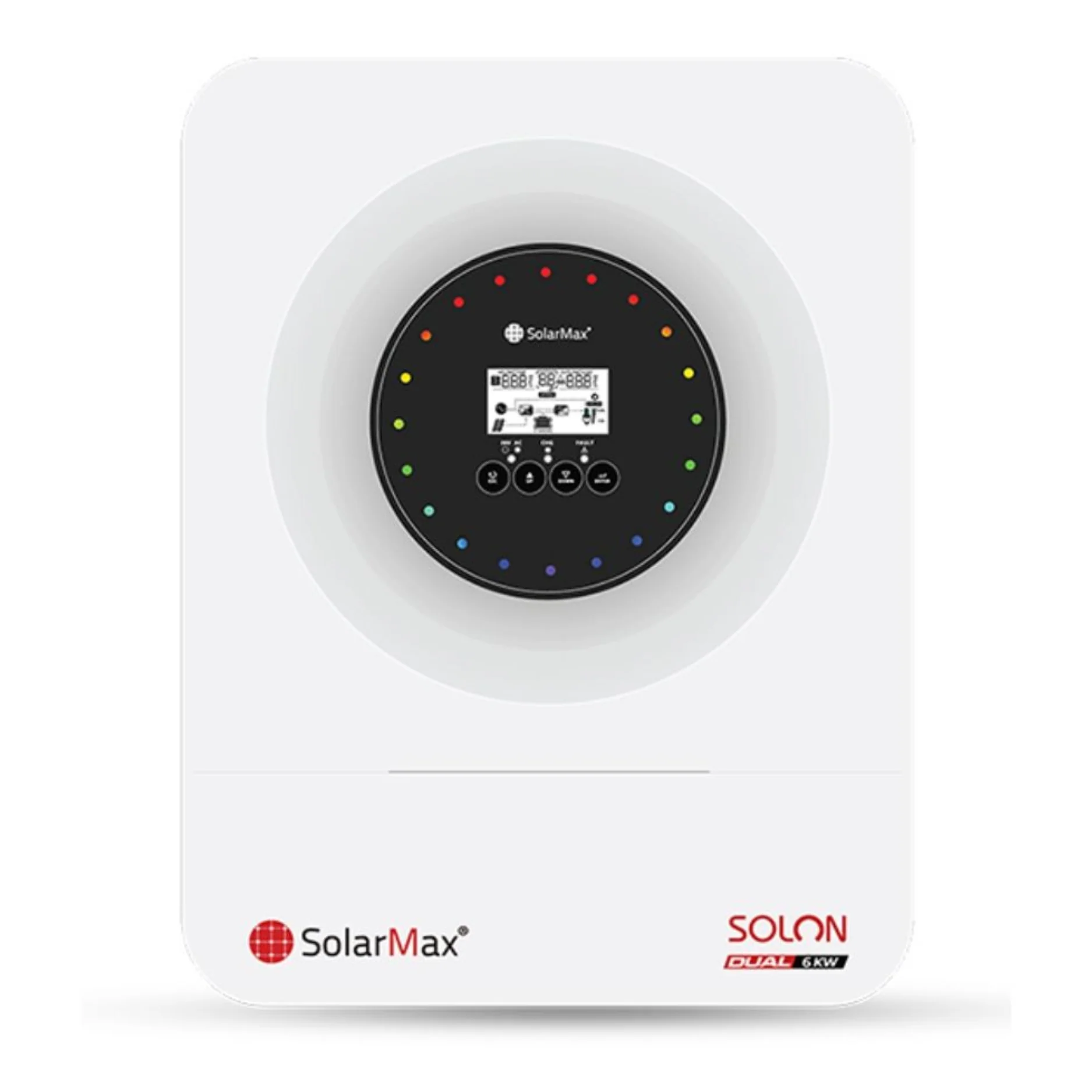

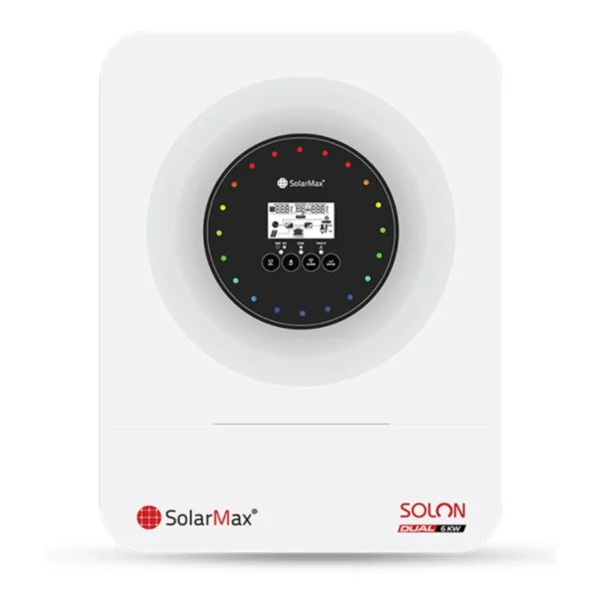

The SolarMax Solon Dual 6KW is a high-performance hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.
Key Features:
Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
6.5KW MPPT PV Input: Equipped with a Maximum Power Point Tracking (MPPT) input, allowing for efficient energy harvest from solar panels.
Battery Compatibility: Operates with or without a 48V DC battery, offering flexibility in system design.
Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.
Technical Specifications:
Model: SM-SOLON-DUAL-6KW
Rated Power: 6000W
Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Surge Power: 12000 VA
Waveform: Pure Sine Wave
Transfer Time: 10 ms (For Computers); 20 ms (For Home Appliances)
Dual AC Output (Main load & Smart load): 6000W
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 61 VDC
Maximum AC Charge Current: 100A
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Array Power: 6000W+
Maximum PV Input Current: 27A
MPPT Range Operating Voltage: 60-450 VDC
Maximum Solar Charge Current: 120A
Communication Interface: Built-in Wi-Fi for remote monitoring and RS485 for BMS compatibility with lithium batteries.
Display: LCD screen for easy monitoring of system status and settings.
Operating Environment:
Humidity: 5% to 90% (non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C
Physical Dimensions: 125mm x 340mm x 420mm
Weight: 9 kg
RGB Lights: For status indication, making it easy to monitor inverter health and operation at a glance.
Applications:
The SolarMax Solon Dual 6KW inverter is ideal for:
Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
Commercial Use: Supporting energy demands in small to medium-sized businesses.
Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
