Description
· Max PV Input 7000W.
· Max PV Voltage 500VDC.
· Max PV Input Current 27A.
· MPPT Range 120 ~ 450V.
· DUAL AC Output 6000W (For Smart & Critical Load)
· 120A Max Charging Current.
· 48VDC Battery (Work With & Without Battery)
· RGB Lights For Status Indication.

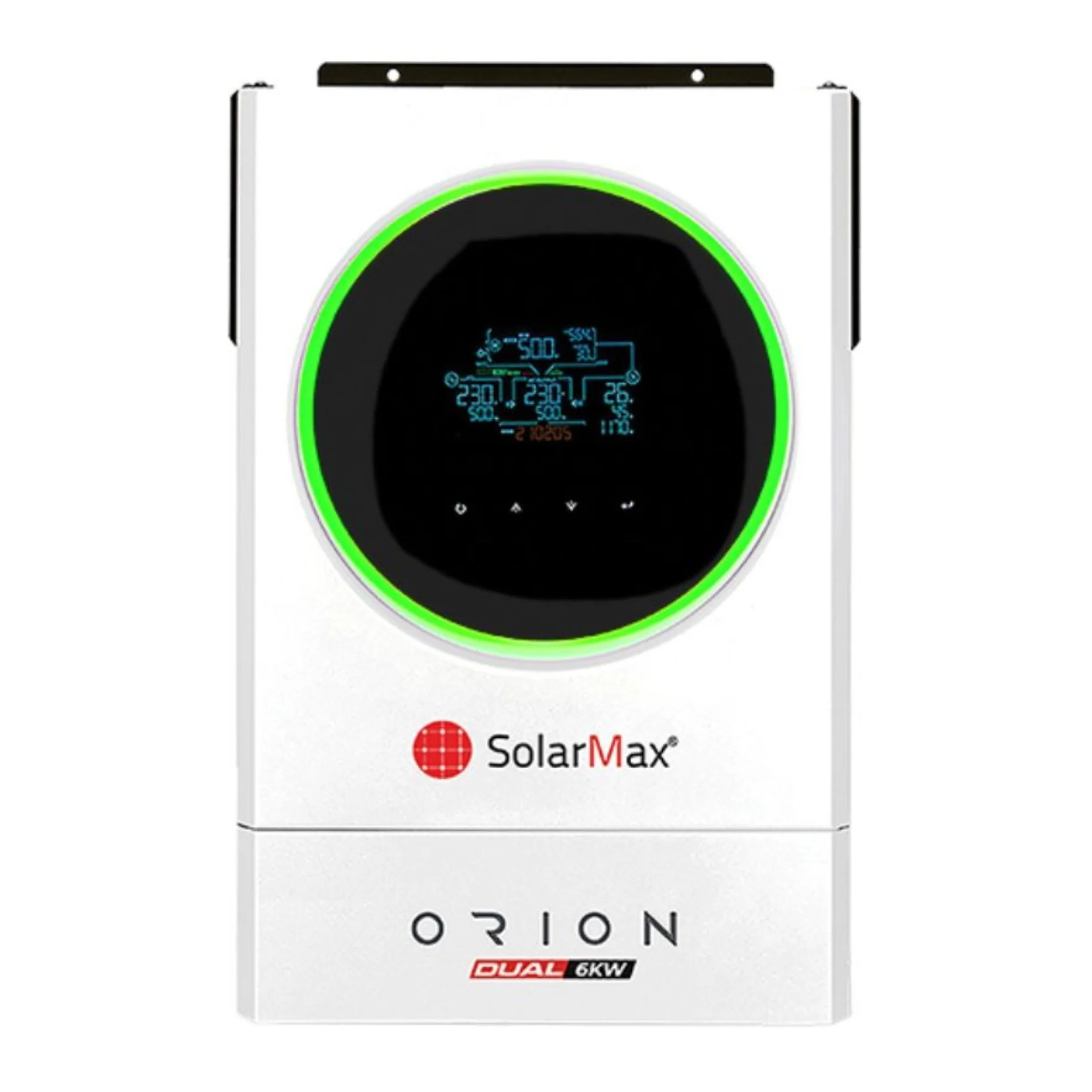

The SolarMax Orion 6KW is a hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.
Key Features:
Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
7KW MPPT PV Input: Equipped with a Maximum Power Point Tracking (MPPT) input, allowing for efficient energy harvest from solar panels.
Battery Compatibility: Operates with or without a battery (48V DC), offering flexibility in system design.
Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.
Parallel Capability: Supports parallel operation, allowing up to nine units to be connected in single-phase or three-phase configurations for increased capacity.
Technical Specifications:
Model: SM-ORION-DUAL-6KW
Rated Power: 6000W
Maximum PV Input Power: 7000W
Maximum PV Voltage: 500VDC
MPPT Operating Voltage Range: 120V ~ 450V
Maximum PV Input Current: 27A
Battery Voltage: 48VDC
Maximum Charging Current: 120A
Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
Operating Temperature Range: -10°C to 50°C
Dimensions: 140 x 295 x 468 mm
Weight: 12 kg
Applications:
The SolarMax Orion 6KW inverter is ideal for:
Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
Commercial Use: Supporting energy demands in small to medium-sized businesses.
Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
