Description

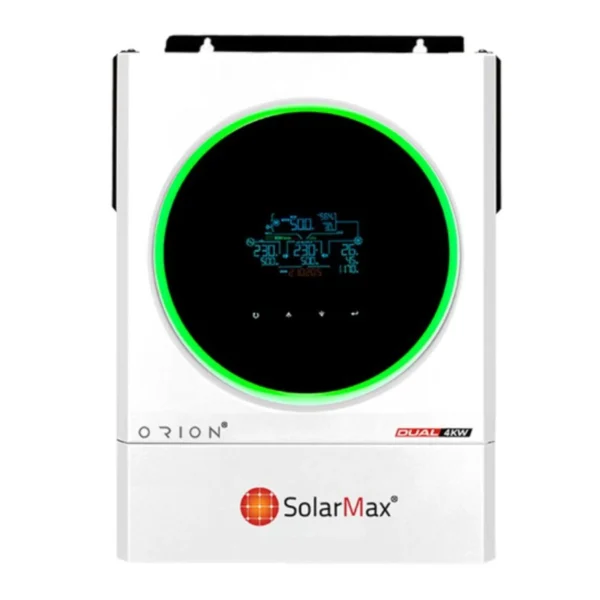

The SolarMax Orion 4KW is a versatile hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a popular choice for managing energy needs in various settings.
Key Features:
Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
MPPT Solar Charger: Equipped with a Maximum Power Point Tracking (MPPT) solar charger, optimizing energy harvest from solar panels.
Battery Compatibility: Operates with or without a battery (24V DC), offering flexibility in system design.
Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.
Technical Specifications:
Model: SM-ORION-DUAL-4KW
Rated Power: 4000VA/4000W
Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Output AC Voltage Regulation (Battery Mode): 230VAC ± 10%
Surge Power: 8000VA
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform: Pure sine wave
Battery Voltage: 24 VDC
Floating Charge Voltage: 27 VDC
Overcharge Protection: 33 VDC
Solar Charger Type: MPPT
Maximum PV Array Power: 5000W
MPPT Range Operating Voltage: 60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Input Current: 27A
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 100A
Maximum Charge Current: 120A
Dimensions (D x W x H): 119 x 313.6 x 457.5 mm
Net Weight: 10 kg
Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Applications:
The SolarMax Orion 4KW inverter is ideal for:
Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
Commercial Use: Supporting energy demands in small to medium-sized businesses.
Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
