Description

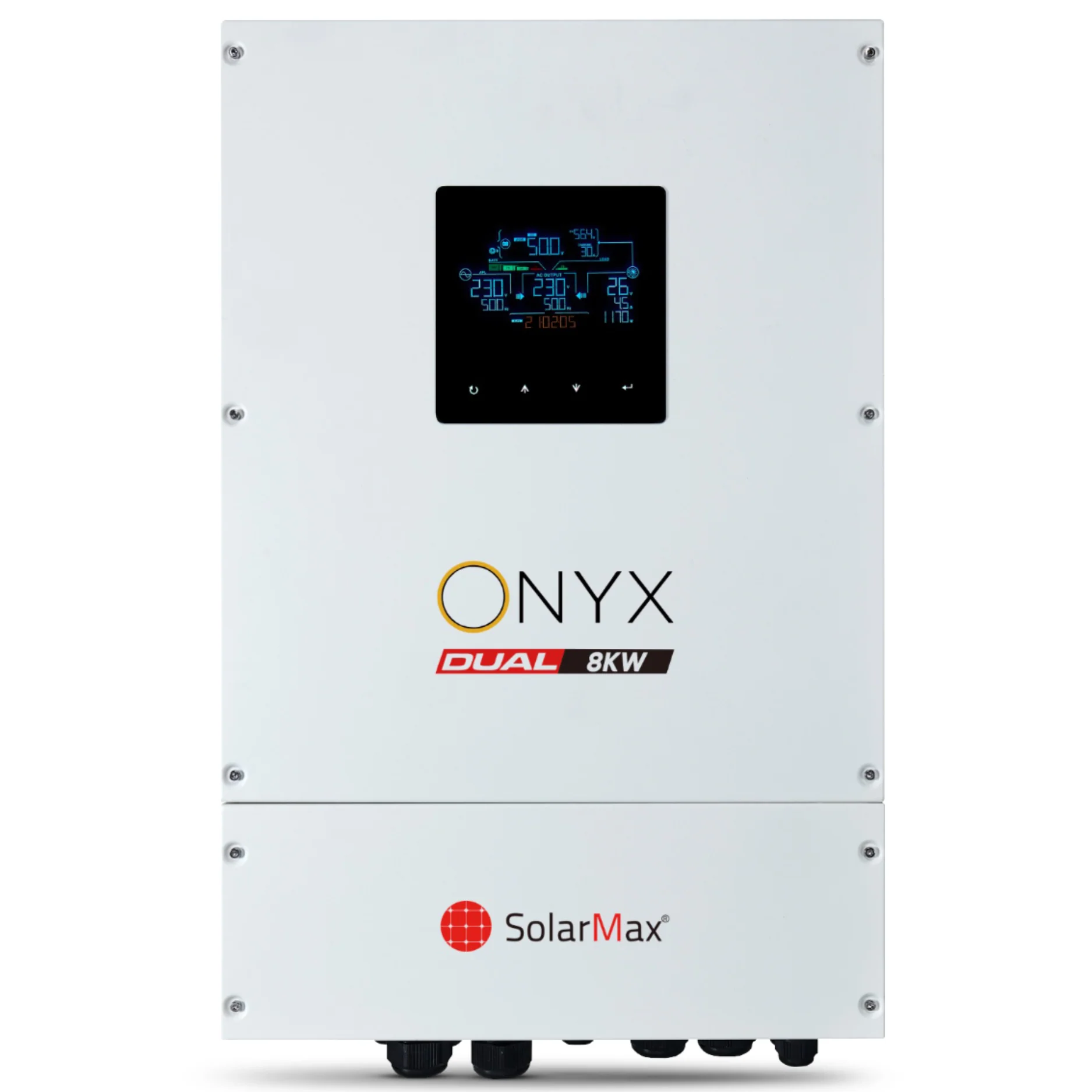

The SolarMax Onyx 8KW is a hybrid solar inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.
Key Features:
Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
10KW Dual MPPT PV Input: Equipped with dual Maximum Power Point Tracking (MPPT) inputs, allowing for efficient energy harvest from solar panels.
Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.
Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
Parallel Capability: Supports parallel operation, allowing up to six units to be connected in single-phase or three-phase configurations for increased capacity.
Technical Specifications:
Model: SM-ONYX-DUAL-8KW
Rated Output Power: 8KW
Maximum PV Input Power: 10KW
Battery Voltage: 48V
Protection Rating: IP65, suitable for outdoor installations.
Display: LCD for real-time monitoring.
Communication Ports: Built-in Wi-Fi for remote monitoring.
Operating Temperature Range: -10°C to 50°C
Applications:
The SolarMax Onyx 8KW inverter is ideal for:
Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
Commercial and Industrial Use: Supporting larger energy demands with the ability to operate in parallel configurations.
Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
