Description
OVERVIEW:

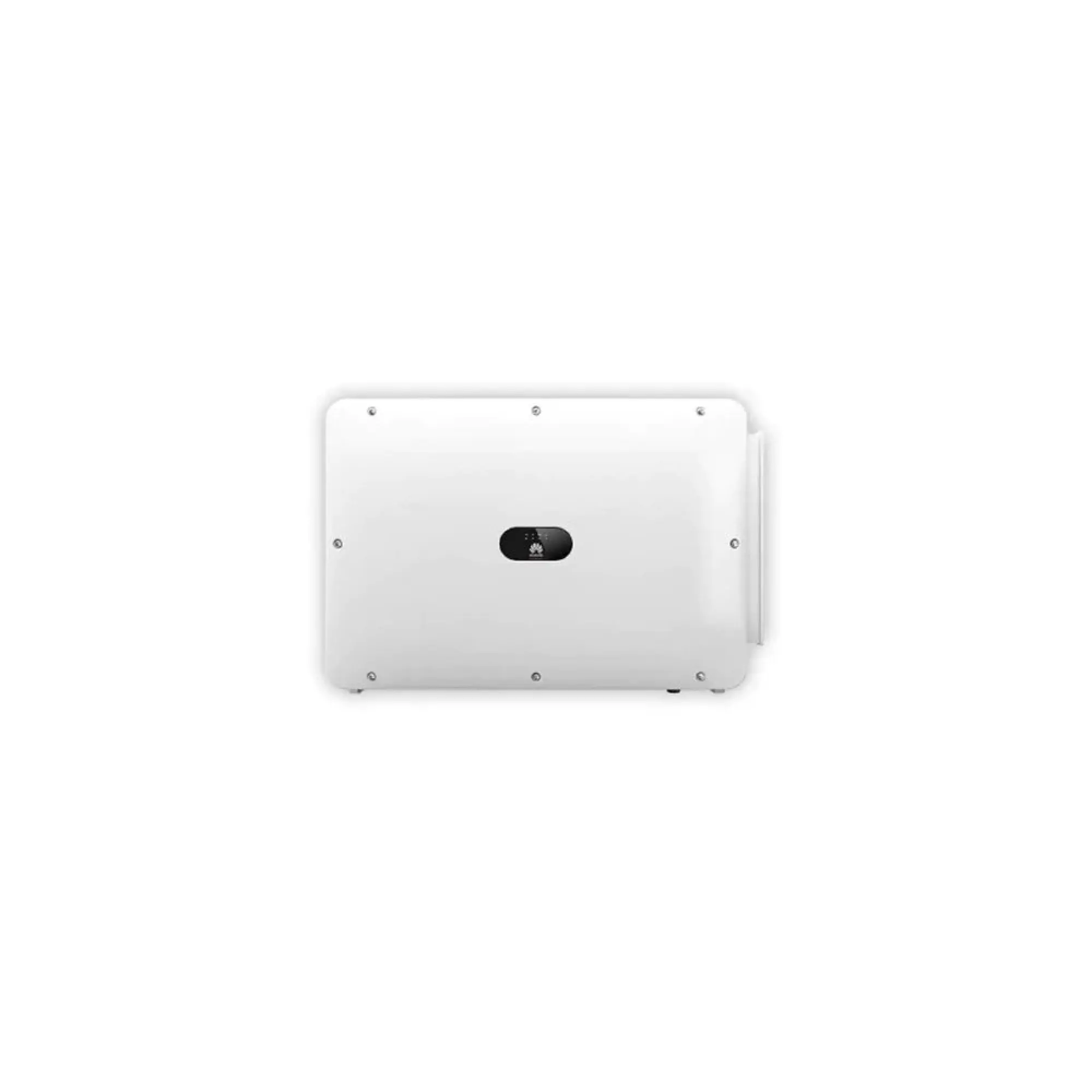

The Huawei SUN2000-60KTL 60kW 3phase Solar Inverter series of products uses three-level circuit topology, the maximum efficiency up to 98.9%, Photon test result is A+/A+ at both of high irradiation and medium irradiation. The six MPPT is adaptable and flexible for building roof-top PV plant design to improve system yields. DC&AC lightning protection module integrated and natural cooling effectively improve product reliability.
This Huawei SUN2000-60KTL 60kW 3phase Solar Inverter has good environment adaptability and can be used for various scenarios covering from 60kW to Megawatts, either rooftop or ground mounted power plants.
Features:
Smart:
12 strings intelligent monitoring and fast trouble-shooting
Power Line Communication supported
Smart I-V Curve Diagnosis supported
Efficient:
Max. efficiency 98.9%, European efficiency 98.7% (@480 V)
Max. efficiency 98.7%, European efficiency 98.5% (@380 V / 400 V)
6 MPPT per unit, effectively reducing string mismatch
Safe:
DC switch integrated, safe and convenient for maintenance
Residual Current Monitoring Unit (RCMU) integrated
Fuse free design
Reliable:
Natural cooling technology
Protection degree of IP65
Type II surge arresters for both DC and AC
