Description

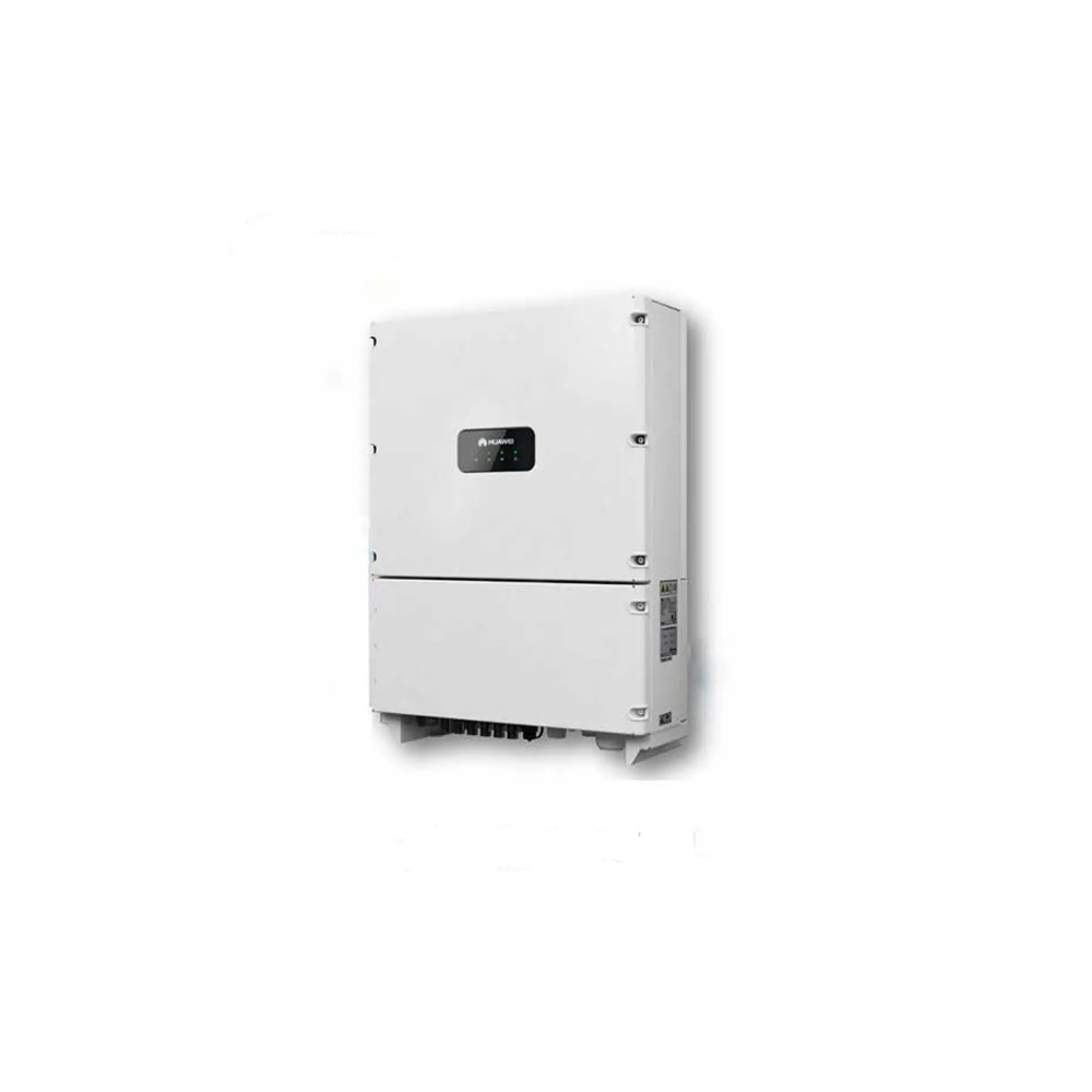

The Huawei SUN2000-25KTL-M5 is a 25 kW three-phase on-grid solar inverter designed for commercial and industrial solar installations. It efficiently converts direct current (DC) from solar panels into alternating current (AC) suitable for grid integration.
Key Features:
3-phase inverter with 22,000VA power output
2 independent MPP trackers
Installation via FusionSolarApp
Efficiency up to 98.65
Communication via WLAN/Ethernet* and 4G*
RS485 for Smart Power Sensor and Smartlogger
AC and DC overvoltage protection
High Efficiency: Achieves a maximum efficiency of 98.4%, ensuring optimal energy conversion and utilization.
Multiple MPPTs: Equipped with multiple Maximum Power Point Trackers (MPPTs) to optimize power output from solar panels under varying conditions.
Enhanced Safety: Features AI-powered Arc Fault Circuit Interruption (AFCI) technology to detect and mitigate electrical arcs, reducing potential fire hazards.
Robust Design: With an IP66 rating, the inverter is dust-tight and protected against powerful water jets, making it suitable for outdoor installations in various environmental conditions.
Flexible Communication: Supports WLAN, Fast Ethernet, and 4G communications, allowing seamless monitoring and management through the FusionSolar app or web portal.
Technical Specifications:
DC Input:
Maximum Voltage: 1,080 V
MPPT Voltage Range: 470–850 V
Number of Inputs: 4
Number of MPPT Trackers: 2
AC Output:
Rated AC Power: 25,000 W
Maximum Apparent Power: 27,500 VA
Rated Output Voltage: 220/380 V, 230/400 V, 240/415 V; 3W/N + PE
Maximum AC Current: 40.5 A
Frequency: 50/60 Hz
Power Factor: 0.8 (adjustable)
Total Harmonic Distortion (THD): <3%
General Specifications:
Operating Temperature Range: -25°C to +60°C
Humidity: 0–100%
Altitude: Up to 4,000 m
Dimensions (W x H x D): 546 mm x 460 mm x 228 mm
Weight: 21 kg
Communication Interfaces: RS485, WLAN
Protection Features:
Anti-Islanding Protection
Overvoltage Protection
Overcurrent Protection
Residual Current Device (RCD)
Reverse Polarity Protection
Isolation Monitoring
Applications:
The SUN2000-25KTL-M5 is ideal for medium to large commercial and industrial solar installations, offering a balance of efficiency, safety, and durability.
