Description
General

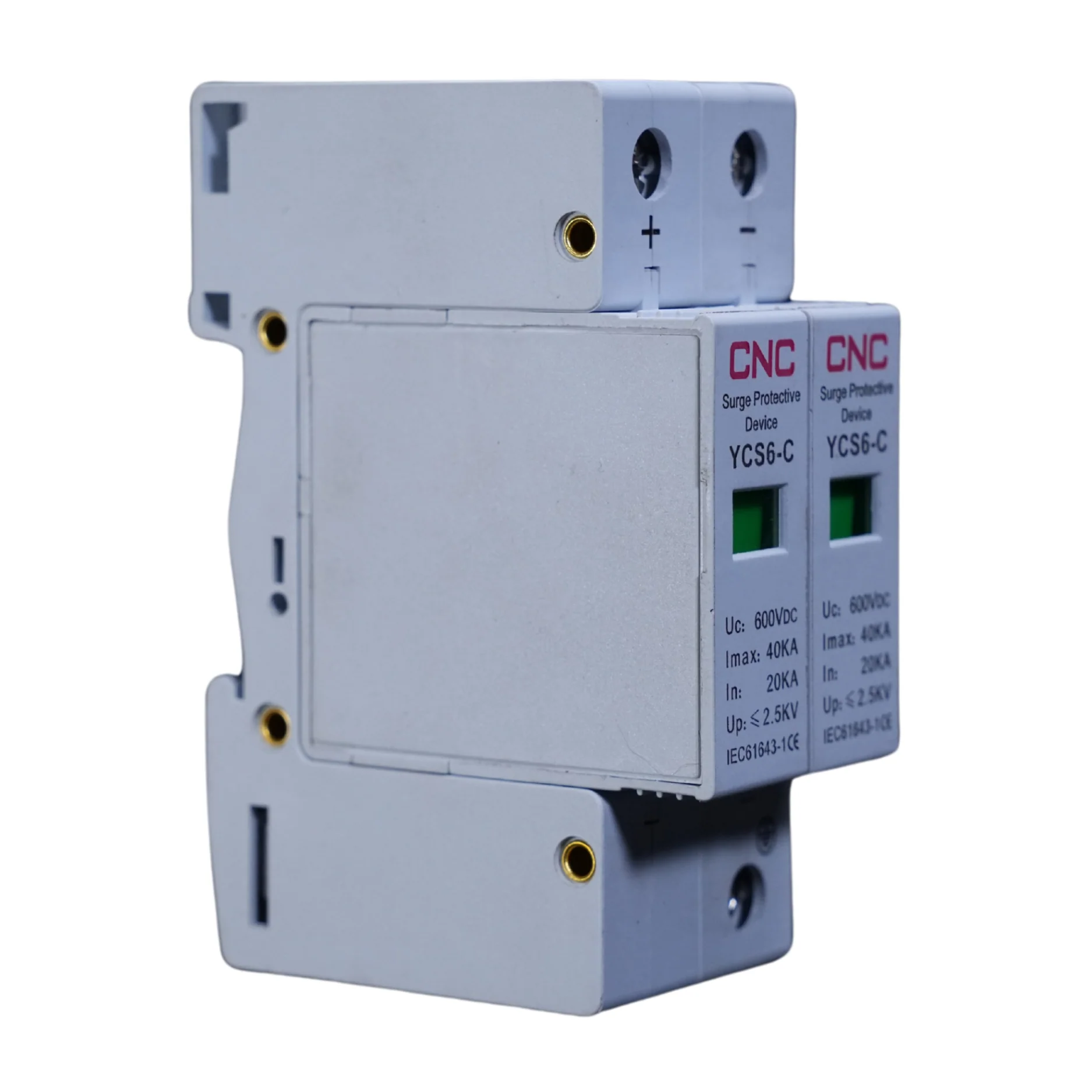

YCS6-C series is applicable to photovoltaic power generation systems. When surge overvoltage occurs in the system due to lightning stroke or other reasons, the protector immediately conducts in nanosecond time to introduce the surge overvoltage to the earth, thus protecting the electrical equipment on the grid.
Features
- T2/T1 + T2 surge protection has two types of protection, which can meet Class I (10/350 µS waveform) and Class II (8/20 µS waveform) SPD test, and voltage protection level Up ≤ 1.5kV.
- Modular, large-capacity SPD, maximum discharge current Imax = 40kA.
- Pluggable module.
- Based on zinc oxide technology, it has no power frequency aftercurrent and fast response speed, up to 25ns.
- The green window indicates normal, and the red indicates a defect, and the module needs to be replaced.
- Dual thermal disconnection device provides more reliable protection.
- Remote signal contacts are optional.
- Its surge protection range can be from power system to terminal equipment.
- It is applicable to direct lightning protection and surge protection of DC systems such as PV combiner box and PV distribution cabinet.
| Model | YCS8 |
| Standard | IEC61643-31:2018; EN 50539-11:2013+A1:2014 |
| Test Category | T1 + T2 |
| Number of Poles | 2Pole |
| Maximum Continuous Working Voltage Ucpv | 600VDC |
| Maximum Discharge Current Imax(kA) | 40 |
| Nominal Discharge Current In(kA) | 20 |
| Maximum Impulse Current Iimp(kA) | 6.25 |
| Voltage Protection Level Up(kV) | 2.2 |
| Response Time tA(ns) | ≤25 |
Remote and Indication
| Working Status/Fault Indication | Green/red |
| Remote Contacts | Optional |
| Remote Terminal Switching Capability (AC) | 250V/0.5A |
| Remote Terminal Switching Capability (DC) | 250VDC/0.1A/125VDC 0.2A/75VDC/0.5A |
| Remote Terminal Connection Capability | 1.5mm² |
Installation and Environment
| Working Temperature Range | -40°C to +70°C |
| Allowable Working Humidity | 5%…95% |
| Air Pressure/Altitude | 80k Pa…106k Pa/-500m….2000m |
| Terminal Torque | 4.5Nm |
| Conductor Cross Section (Maximum) | 35mm² |
| Installation Method | DIN35 standard din-rail |
| Protection Degree | IP20 |
| Shell Material | Fire-proof level UL 94 V-0 |
| Thermal Protection | Yes |
Failure Release Device, Alarm Release Device
Failure Release Device
The surge protective device is equipped with a failure protection device. When the protector is broken down due to overheating, the failure protection device can automatically disconnect it from the power grid and give an indication signal.
The window displays green when the protector is normal, and red when the protector fails.
Alarm Remote Signaling Device
The protector can be made into a variety of remote signaling contacts. The remote signaling contacts have a set of normally open and normally closed contacts. When the protector works normally, the normally closed contacts are connected. If one or more modules of the protector fail, the contact will change from normally open to normally closed, and the normally open contact will work and send a fault message.
Overall and mounting dimensions(mm)
